SolarTerrace MAC

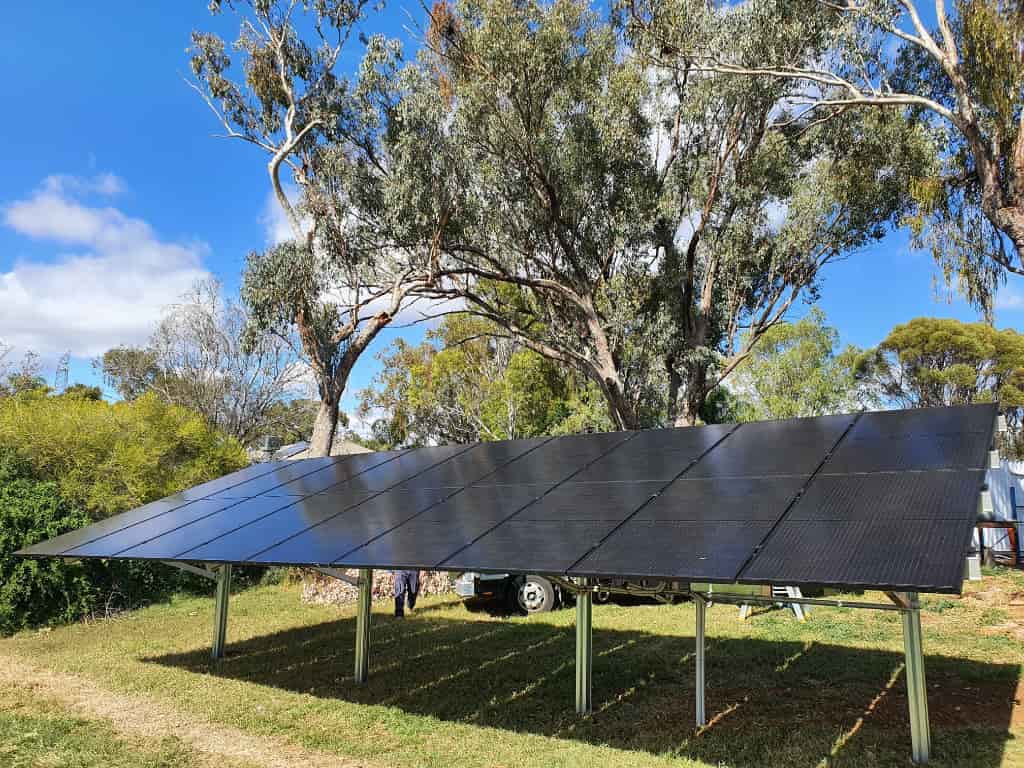

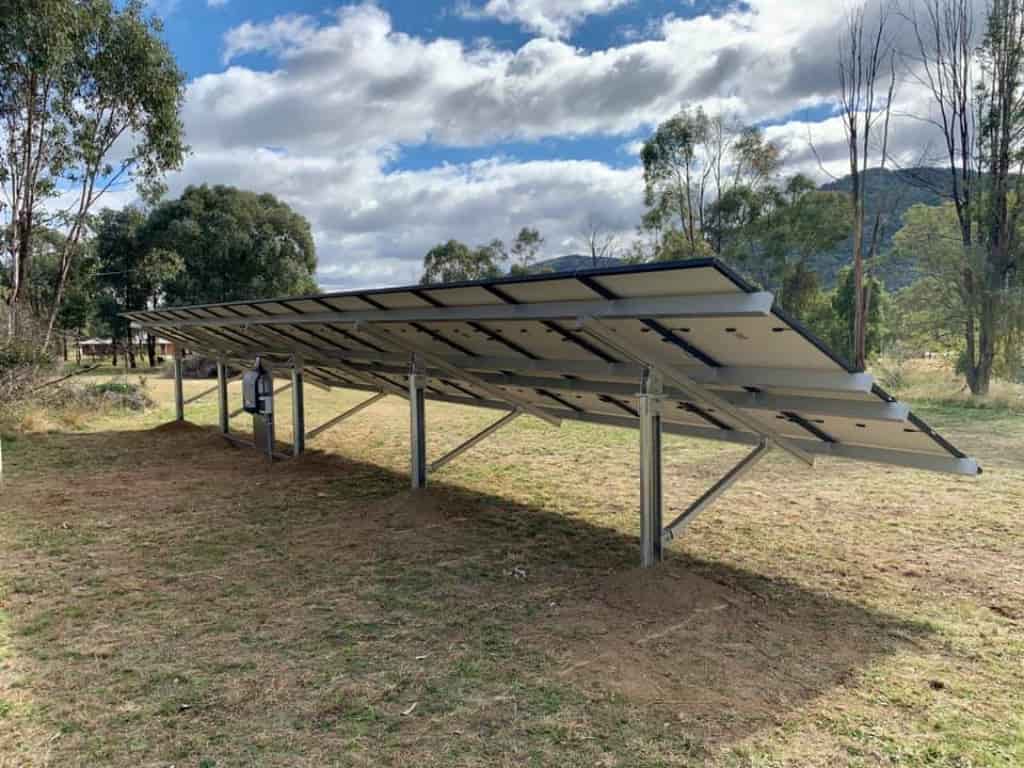

PVezRack^® SolarTerrace MAC is a cost-effective, high-performance MAC steel structure designed for rapid deployment.

Main Benefits

Cost-Efficient

Highly competitive pricing compared to aluminium without sacrificing structural integrity.

Rapid Installation

Pre-drilled components for a fast, no-weld assembly.

Built for Extremes

Certified to withstand wind loads of up to 45m/s.

Technical Precision

Precision-engineered to support 18 panels (2P x 9, portrait) with reliable structural integrity. Corrosion-resistant materials and SUS 304 fasteners, certified for 45 m/s wind loads.

Technical Details

Basic Specifications	Panel Size: 2278x1134x30mm Wind Load: 45m/s Snow Load: 0cm Install angle: 20°
Installation Guide	Recommended footing dimensions: 450MM (w) x 450mm (l) x 500mm (h). Requires a concrete strength of 25MPA. See our installation guide for instructions.
Foundation	Concrete. For perfect alignment, we recommend drilling foot plate holes after the concrete has cured for seven (7) days. Use chemical anchors with a minimum depth of 150 mm.

Resources

Video

View our instruction video on the SolarTerrace MAC series:

Brochure

• SolarTerrace MAC
